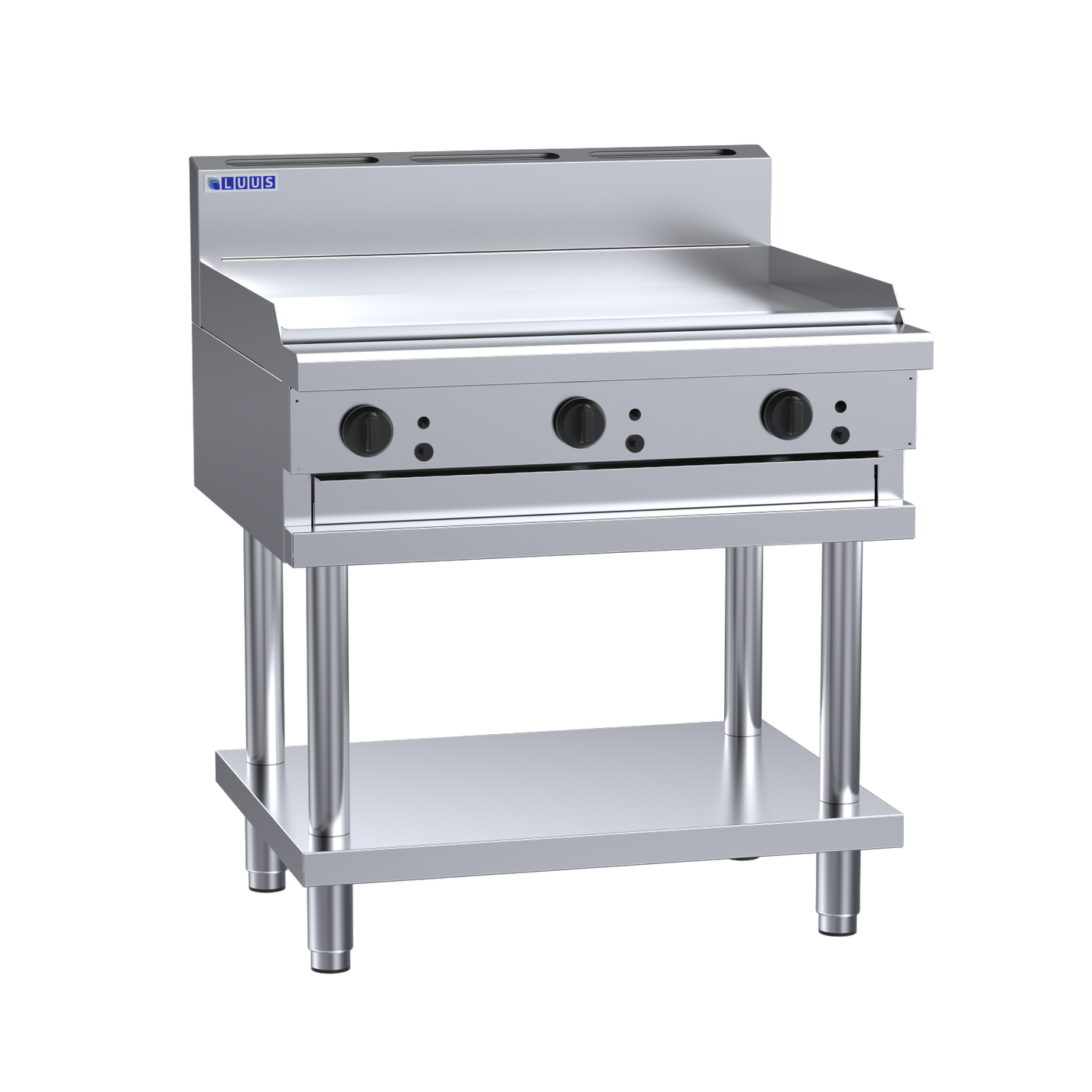

Introducing the CS 900mm Griddles from Luus Industries - the perfect addition to any commercial kitchen looking for a high-quality and durable griddle and chargrill combo. The CS 900mm Griddles are built with heavy-duty construction and 304 stainless steel panels, making them easy to clean and maintain.
The griddle plate is made from 21mm thick mild steel and comes in a range of finishes including chrome and ribbed plates. The plate is also available in different sizes, including the CS-9P plate with a cooking area of 0.48m2 and the CS-6P3C plate with a cooking area of 0.32m2. Both griddle plates feature 18 mj burners with pilot, FFD, and piezo ignition, along with a variable flame control valve with a low flame setting.
The chargrill section includes heavy-duty cast iron diamond grates, with a cooking area of 0.15m2 for the CS-6P3C bbq. The chargrill features 33 mj burners with pilot, FFD, and piezo ignition, along with a variable flame control valve with a low flame setting. Optional ceramic rocks are available for even heat and smokiness, as well as a cast-iron ceramic rock tray.
The CS 900mm Griddles are available as freestanding or benchtop models, with adjustable stainless steel legs and working height of 900mm. The griddles come with a 24-month platinum warranty and are supplied with a gas regulator (specify Nat or LP on order).
To make it easier for you to compare the different models and features of the CS 900mm Griddles, we've included a table below with all the specifications and descriptions.
Specification | CS-9P | CS-6P3C |
---|---|---|
Griddle Plate Dimensions | 890mm x 540mm | 590mm x 540mm |
Cooking Area | 0.48m2 | 0.32m2 |
Griddle Burners | 18 mj with pilot, FFD and piezo ignition | |
Chargrill Burners | 33 mj with pilot, FFD and piezo ignition | |
Griddle Plate Thickness | 21mm mild steel | |
Splash Guards | 2mm 304 stainless steel | |
Chargrill Grates | Heavy duty cast iron diamond grates 147mm x 540mm | |
Chargrill Cooking Area | N/A | 0.15m2 |
Chargrill Burner Configuration | Two piece burner with cast-iron heat distributing hood | |
Optional Accessories | Ceramic rocks, benchtop mount, ribbed or chrome finish on hotplates, RH and LH side shields | |
Overall Construction | Heavy duty welded 1.2mm 304 stainless steel front hob, 0.9mm 304 stainless steel front and side panels, 1.2 mm 304 stainless steel splashback, stainless steel legs with 55mm height adjustment range | |
Dimensions | 900mm x 800mm x 1100mm H (Stand), 900mm x 800mm x 560mm H (benchtop), working height 900mm | |
Weight | 115kg | |
Packed Dimensions | 940mm x 860mm x 1260mm H | |
Packed Weight | 140kg | |
Connections | Gas 3/4” BSP male, 180mm from right, 50mm from rear, 600mm from floor, benchtop model gas connection: 60mm from bottom | |
Warranty | 24 months Platinum Warranty |
Order your CS 900mm Griddles today and experience the perfect combination of quality construction, high performance, and versatile cooking options, backed by a 24-month 'Platinum Warranty'.
